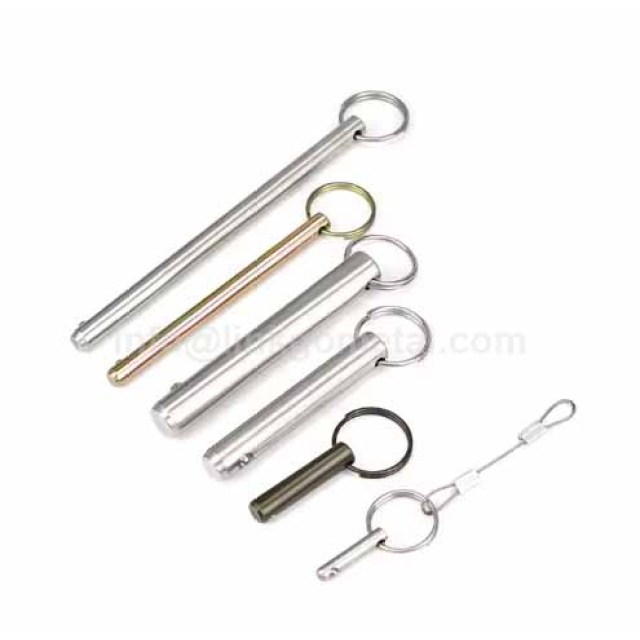

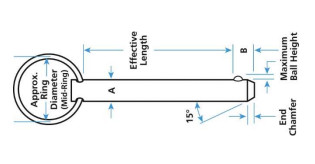

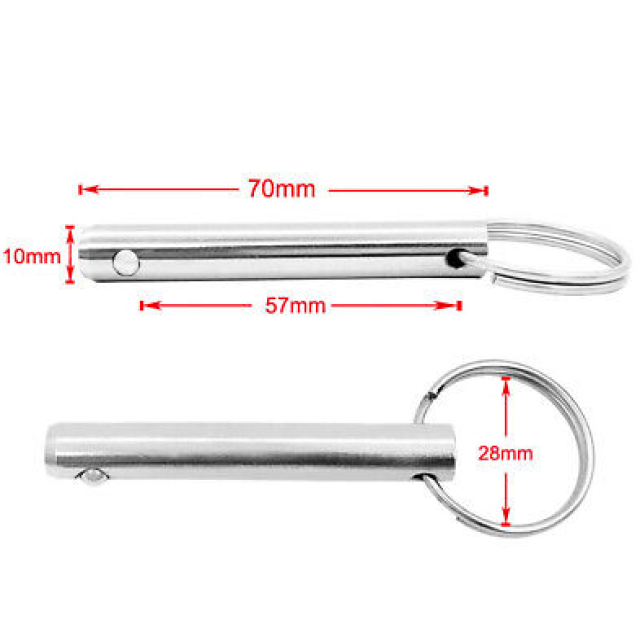

| Part Number | Pin Diameter- A [in] | Effective Length[in] | Overall Length[in] |
| LF54-01 | 3/16 | 0.8125 | 1.19 |
| LF54-02 | 3/16 | 1 | 1.37 |
| LF54-03 | 3/16 | 1.3125 | 1.69 |
| LF54-04 | 3/16 | 1.5 | 1.87 |
| LF54-05 | 3/16 | 1.8125 | 2.19 |
| LF54-06 | 1/4 | 0.75 | 1.17 |
| LF54-07 | 1/4 | 1 | 1.42 |
| LF54-08 | 1/4 | 1.25 | 1.67 |
| LF54-09 | 1/4 | 1.5 | 1.92 |
| LF54-10 | 1/4 | 1.75 | 2.17 |
| LF54-11 | 1/4 | 2 | 2.42 |
| LF54-12 | 5/16 | 0.625 | 1.16 |
| LF54-13 | 5/16 | 0.75 | 1.28 |
| LF54-14 | 5/16 | 1 | 1.53 |
| LF54-15 | 3/8 | 1.125 | 1.75 |
| LF54-16 | 3/8 | 1.5 | 2.13 |
| LF54-17 | 3/8 | 1.625 | 2.25 |
| LF54-18 | 1/2 | 1 | 1.75 |
| LF54-19 | 1/2 | 1.5 | 2.25 |

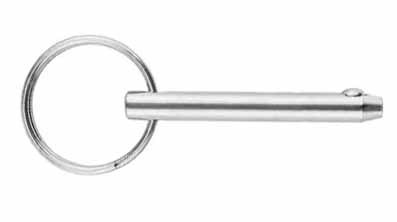

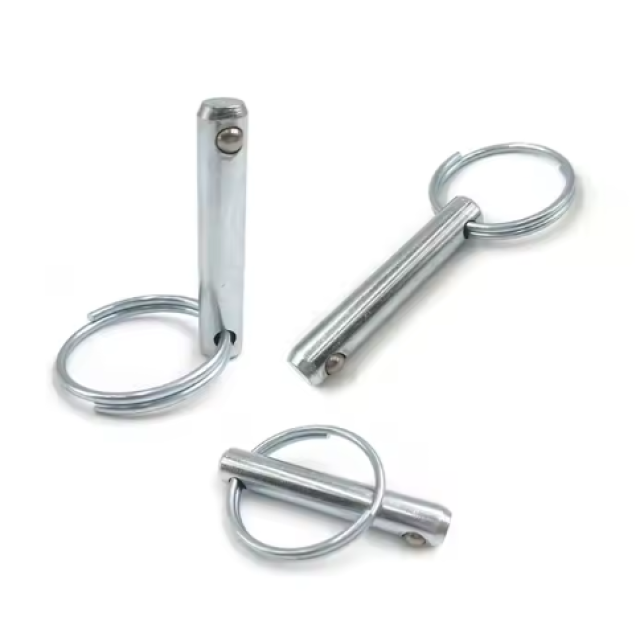

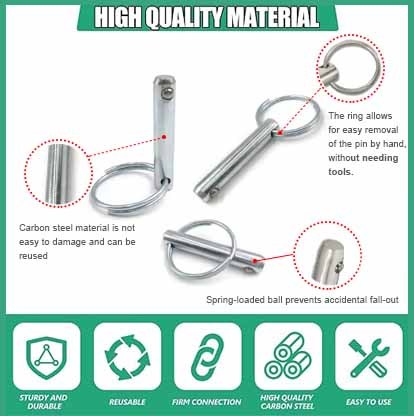

The main feature of a pull ring detent pin is its locking mechanism that uses a spring-loaded pin with a pull ring to secure or release components quickly and safely. The pin typically features a ring or loop at one end that can be pulled to disengage the locking mechanism, allowing the pin to be removed or inserted into place.
The ring allows for easy removal of the pin by hand, without needing tools.
A spring-loaded ball or pin that locks the detent pin into position, preventing it from unintentionally disengaging under load or movement.
The design allows for fast, tool-free assembly or disassembly, making it ideal for situations that require frequent adjustments or maintenance.
Once inserted, the detent pin stays in place until the pull ring is activated, ensuring a secure connection.
Pull ring detent pins are used in various applications, such as in machinery, vehicles, and military or aerospace systems, where ease of assembly and secure locking are critical.
The pull ring detent pin is designed to offer both convenience and reliability, especially in environments where quick, frequent, or tool-free component adjustments are needed.
Pull ring detent pins are widely used in various industries due to their ease of use, reliability, and quick-release functionality.
Below are some common applications:
Aircraft Assembly/Disassembly: Used to secure parts of aircraft such as panels, hatches, and seat rails, allowing for quick assembly or maintenance without tools.
Landing Gear: Used to secure components of landing gear or other movable parts on aircraft.
Cargo Tie-downs: Ensures the safe and quick fastening of cargo or equipment inside aircraft.

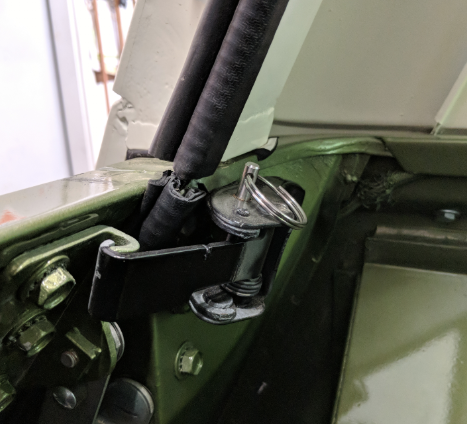

Vehicle Assembly: In automotive manufacturing, detent pins are used to secure and position parts, such as doors, panels, and trim elements, allowing for easy replacement or adjustments.
Tow Hooks: They are used to attach and detach towing hooks on vehicles.
Engine Components: They help secure engine covers or components, allowing for quick servicing.
3.Marine and Maritime
Boat and Ship Components: Used in securing removable boat parts such as mast assemblies, davits, or deck hatches.
Marine Equipment: Detent pins can secure equipment on deck (such as winches, cleats, or anchors) that may need to be adjusted or replaced.
Farm Equipment: Detent pins are used to secure and release various attachments on tractors, harvesters, or plows, such as hitch components, plow blades, and other attachments.
Emergency Equipment: In fire trucks or rescue equipment, detent pins may be used to quickly secure or release tools, ladders, or stretchers.
Portable Barriers/Fences: Detent pins are used in locking portable barriers or fencing systems, allowing for easy setup and takedown.
Quick Release: Detent pins can be easily removed or inserted by pulling on the ring, making them ideal for situations where speed and efficiency are important.
Tool-Free Operation: Most applications do not require tools, which reduces downtime and enhances productivity.
Security: The spring-loaded detent mechanism ensures a firm and secure connection, preventing accidental disconnections under load.
Durability: These pins are designed to withstand tough environments, offering both ease of use and long-lasting reliability.

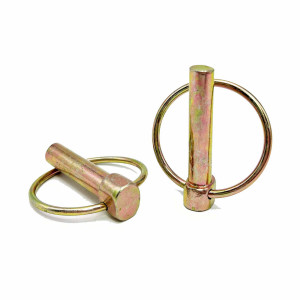

Lynch Pins are designed with a solid pin with an attached self-locking ring. This ring allows the pin to be securely held in place and provides an easy grip for quick removal. Made of low carbon steel, zinc plated. Available in stainless steel and customization.
Category 2 Lift Arm Pin is a category 2 and has category 1 threads. Category 2 lift arm pin is adjustable and made from mild steel with a trivalent white zinc finish for corrosion resistance.Suitable for use in industries such as agricultural equipment, construction machinery, etc.
Category 2 with category 1 threads
Material: mild steel
Finish: trivalent white zinc
Set screw collars are made of carbon steel, zinc plated for corrosion resistance, and are available in a variety of sizes and surface treatments to meet different industrial needs.
#Material: Carbon Steel, Stainless Steel(SS), Aluminum(AL)
#Surface Treatment: Black Oxide, Zinc Plated, Slef Colour Oiled
#Custom size avaiable
Linch Pins are designed with a solid pin with an attached self-locking ring. This ring allows the pin to be securely held in place and provides an easy grip for quick removal. Made of low carbon steel, zinc plated. Available in stainless steel and customization.
